960 Sport Series
Experience the high cost-effectiveness and quick setup of the 960 SPORT SERIES, ideal for indoor environments needing reliable, slim LED solutions.
- Ultra-light---lighter 40% than aluminum die-casting cabinet
- Ultra-thin---high strength,more slim than aluminum in the design,thinner around 30%
- Anti-interference---special anti electromagnetic interference function
- Fast cooling---good heat dissipation performance, effectively protecting the module circuit
- Easy installation---Installation takes only 20 seconds
- High precision---seamiess splicing though CNC machining
- High universality---can be processed according to module drawing,used for indoor
- High cost-effective---large-scale production,complete prduction &supply chain

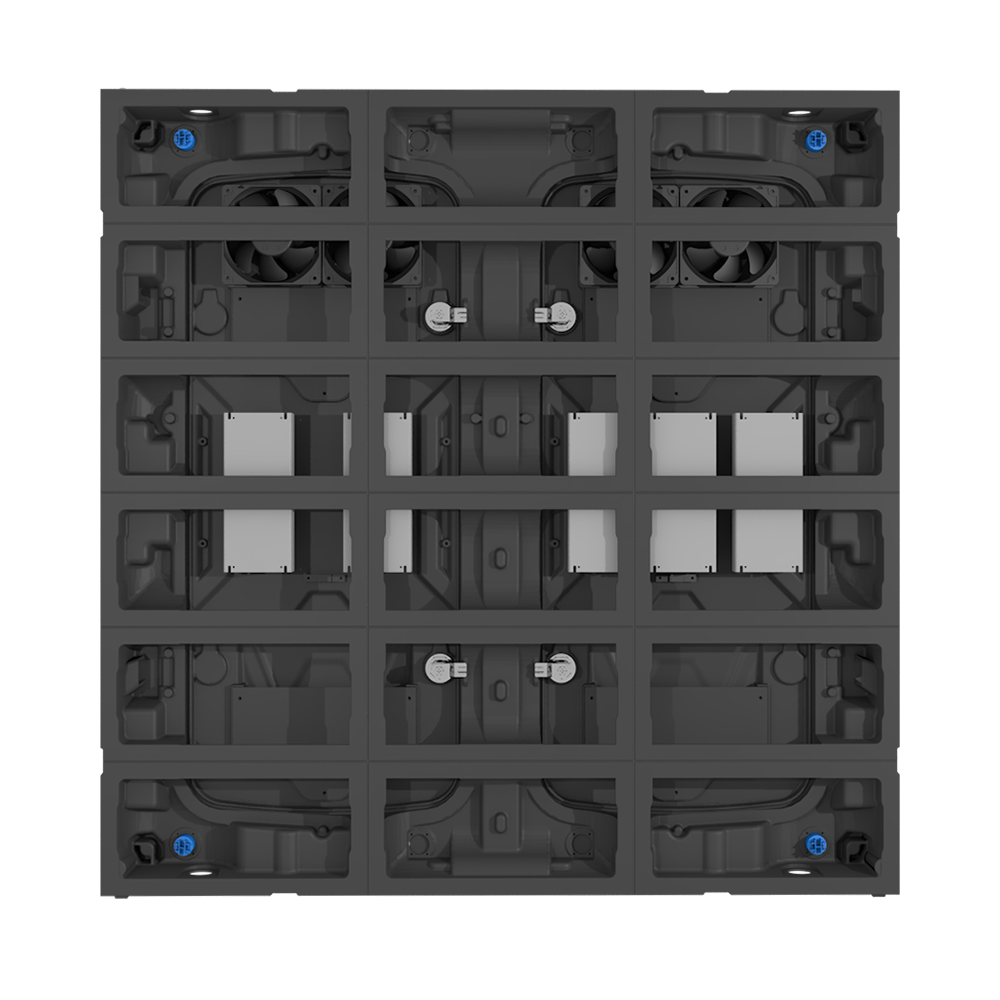

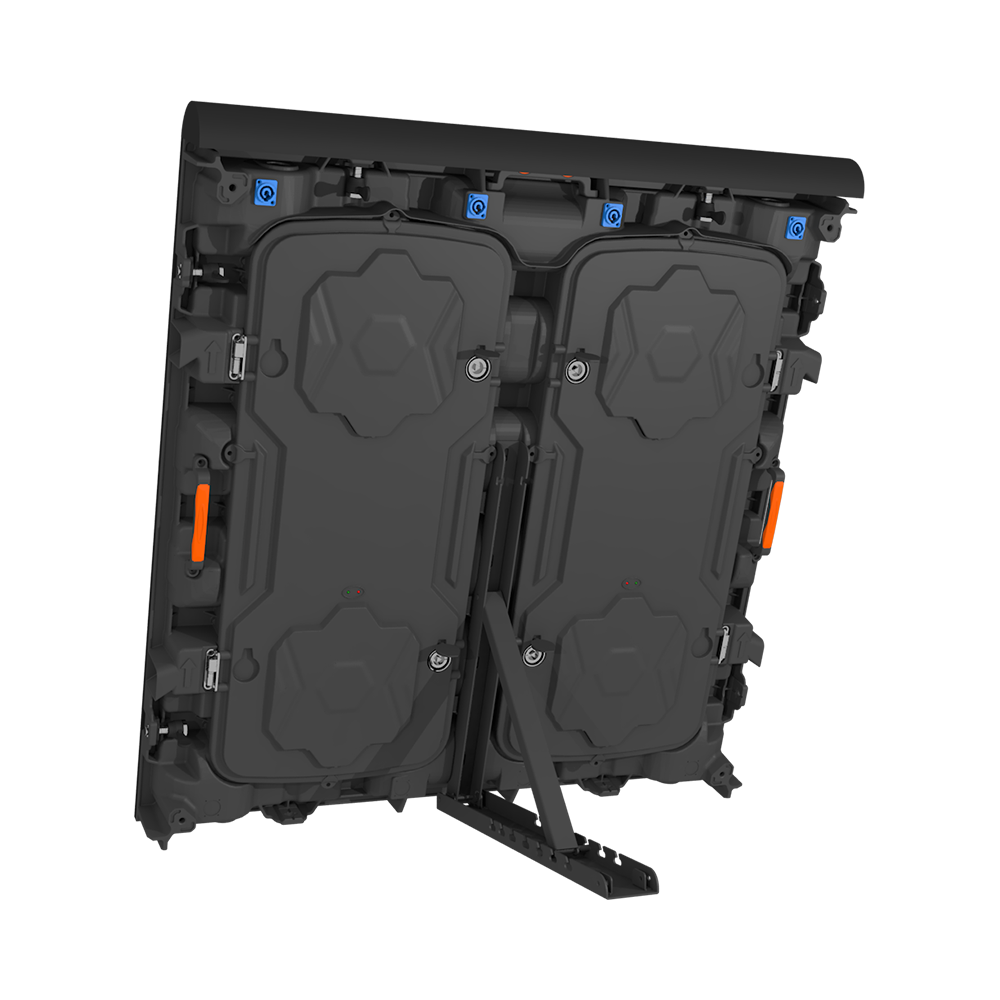

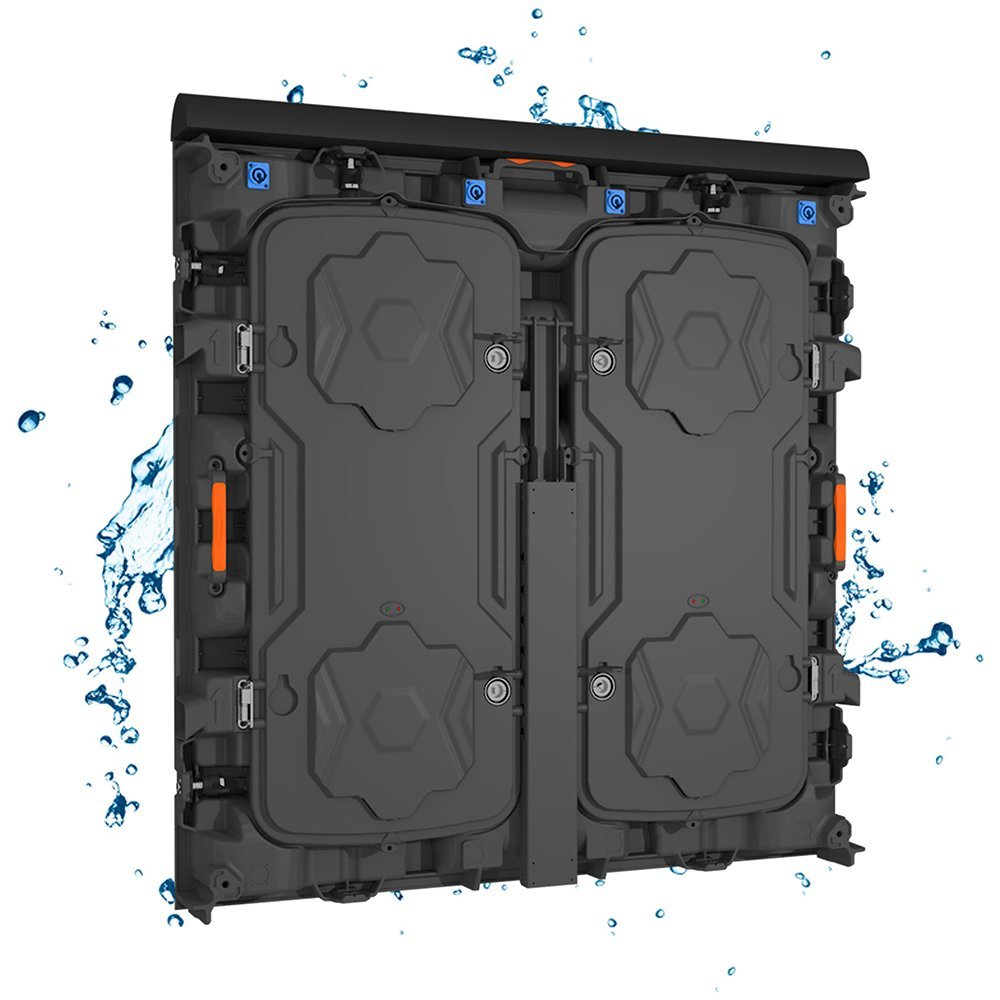

960X960 Sport-BB
| Size | W960*H960*D90(mm) |
| Weight | Mg 15.2kg/Al 18.3kg |
| Module | P5/P6.67/P8/P10/P13.33 |
| Material | Magnesium alloy/Aluminum alloy |
| Installation | Fixed installation |
| Use of the environment | indoor/Outdoor |
| included accessories | Fast lock,handle,system/power installation plate,connecting piece |
| Cabinet color | Black,Other color customization |
| PCB Board | P5/P6.67/P8/P10/P13.33 |
| Suite Size | 320mm*160mm |
| Flight Case | 5PCS cabinet in one case,6PCS cabinet in one case |
| Power Supply | 200W-5V 40A，400W-5V 80A |
| Power Connector | 20A 3*2.5㎡ National standard |

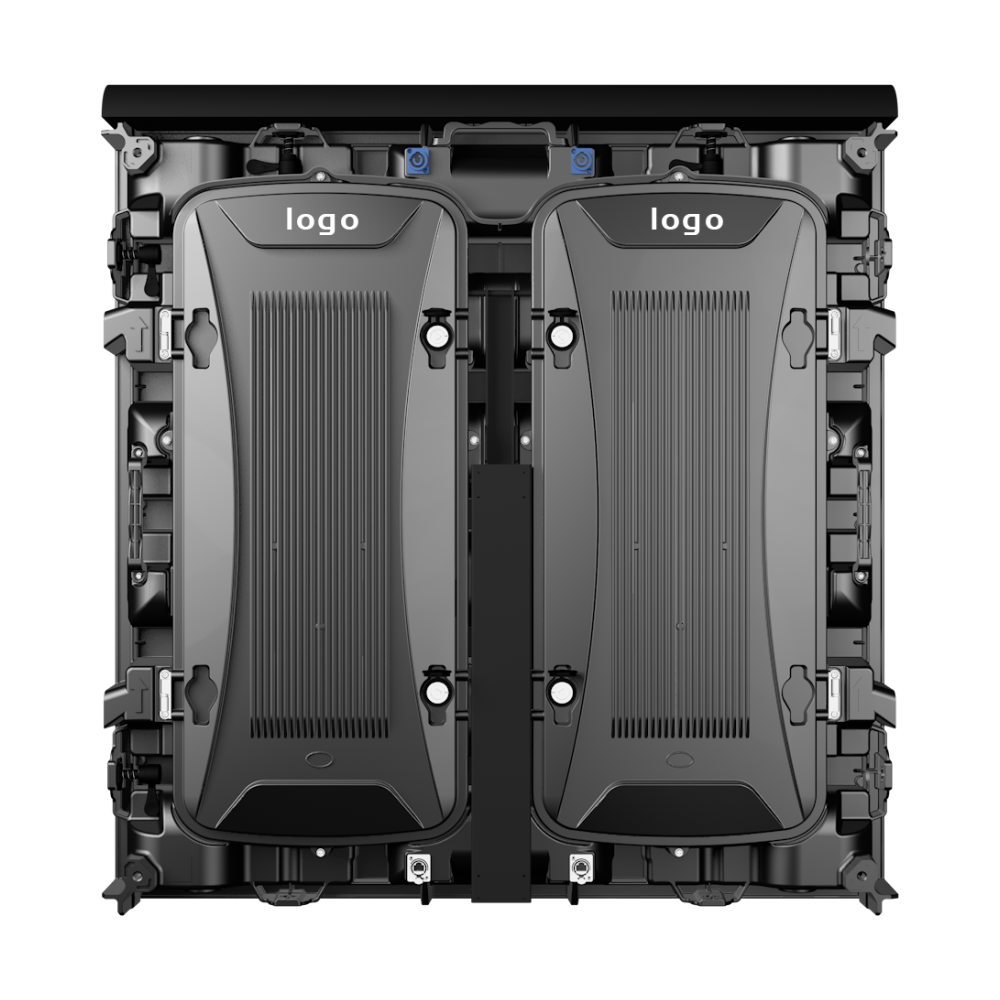

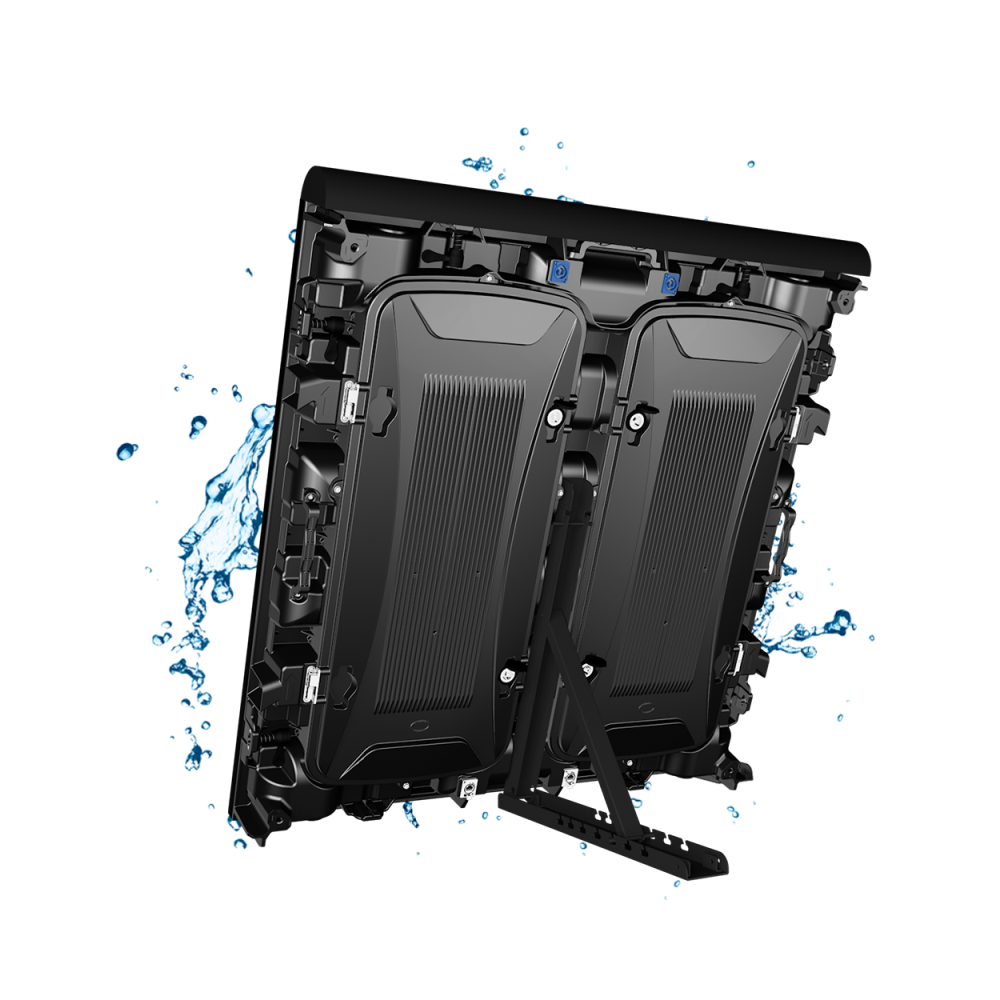

960X960 Sport-BC
No fan required
| Size | W960*H960*D90(mm) |
| Weight | Mg 15.8kg/Al 19kg |
| Module | P4/P5/P6.67/P8/P10/P13.33 |
| Material | Magnesium alloy/Aluminum alloy |
| Installation | Fixed installation |
| Use of the environment | indoor/Outdoor |
| included accessories | Fast lock,handle,system/power installation plate,connecting piece |
| Cabinet color | Black,Other color customization |
| PCB Board | P4/P5/P6.67/P8/P10/P13.33 |
| Suite Size | 320mm*160mm |
| Flight Case | 5PCS cabinet in one case,6PCS cabinet in one case |
| Power Supply | 200W-5V 40A，400W-5V 80A |
| Power Connector | 20A 3*2.5㎡ National standard |

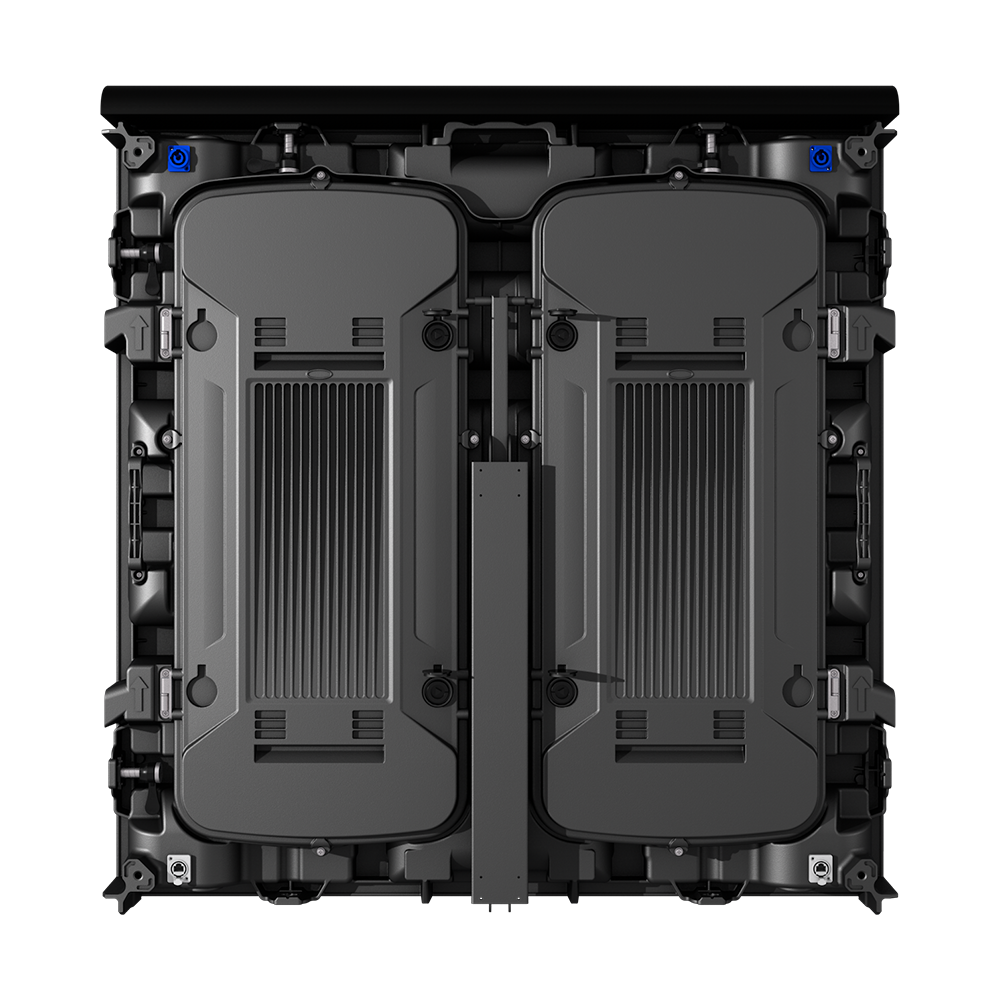

960X960 Sport-BE
| Size | W960*H960*D90(mm) |
| Weight | Mg 15.8kg/Al 19kg |
| Module | P4/P5/P6.67/P8/P10/P13.33 |
| Material | Magnesium alloy/Aluminum alloy |
| Installation | Fixed installation |
| Use of the environment | indoor/Outdoor |
| included accessories | Fast lock,handle,system/power installation plate,connecting piece |
| Cabinet color | Black,Other color customization |
| PCB Board | P4/P5/P6.67/P8/P10/P13.33 |
| Suite Size | 320mm*160mm |
| Flight Case | 5PCS cabinet in one case,6PCS cabinet in one case |
| Power Supply | 200W-5V 40A，400W-5V 80A |
| Power Connector | 20A 3*2.5㎡ National standard |
