AW SERIES LED DISPLAY

Enhance your space with the AW SERIES LED DISPLAY, featuring both flat and curved cabinets, easy installation, and robust design for any environment.

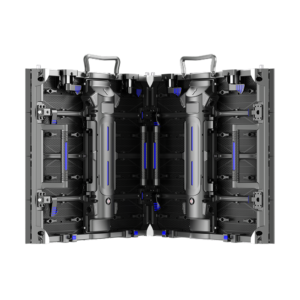

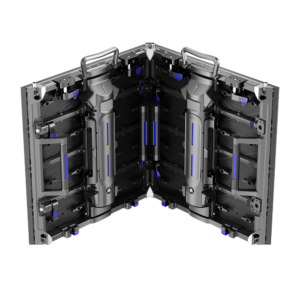

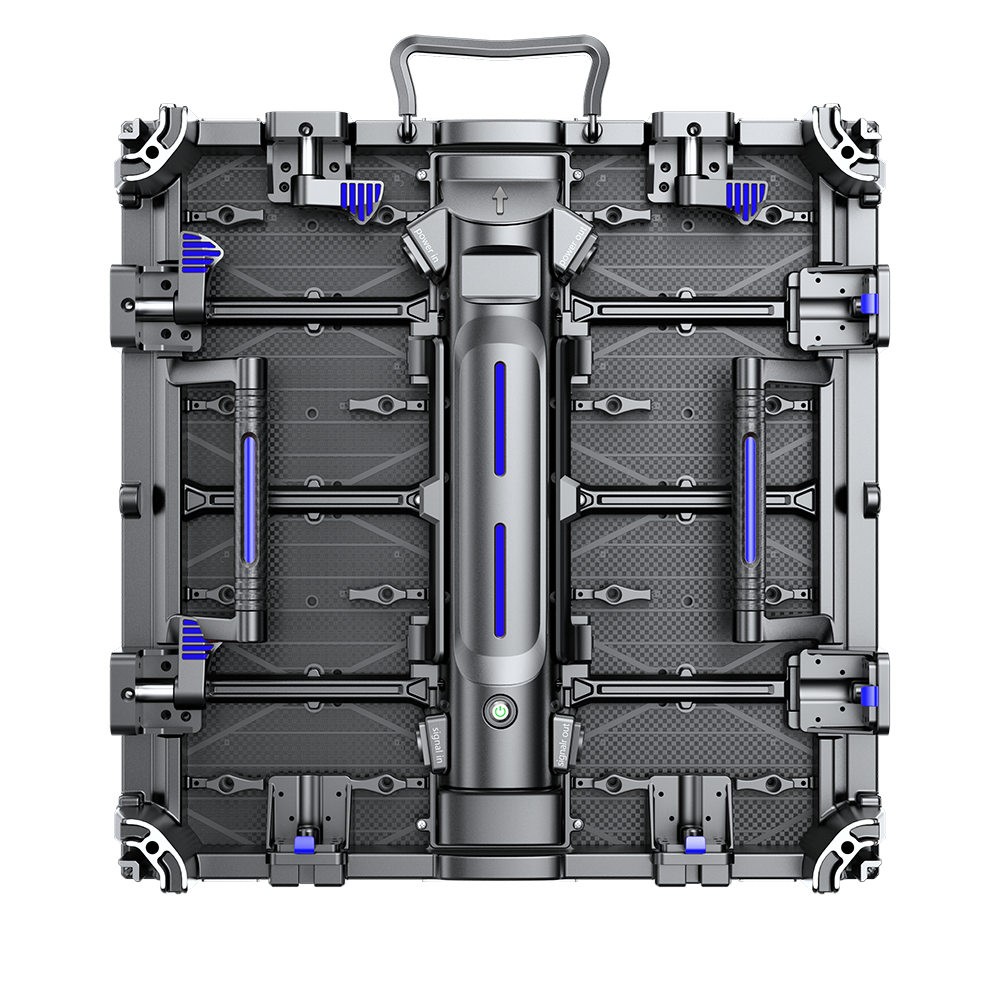

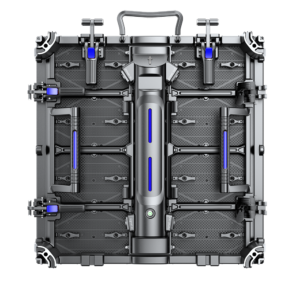

500X500-AW flat and curved cabinet
125mmx250mm
P3.91/P4.81/P2.976/P2.604
500mmx500mmx71mm
3.9KG
Black
Hoisting and fixed installation
Four modules per Cabinet
Indoor-lp30/0utdoor-lp65
2Pcs: locating pins, 1Pcs: handle.
1PCS:door plank, 2Pcs:power strip.
4PCS:quicklocks, 1Pcs: Flat Plate connector.

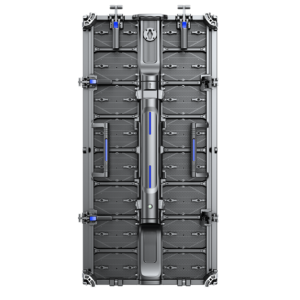

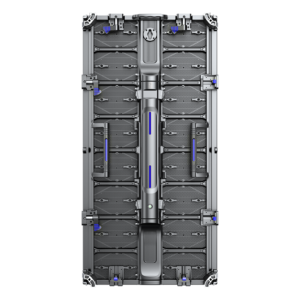

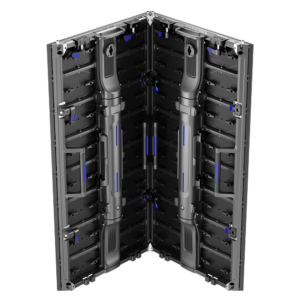

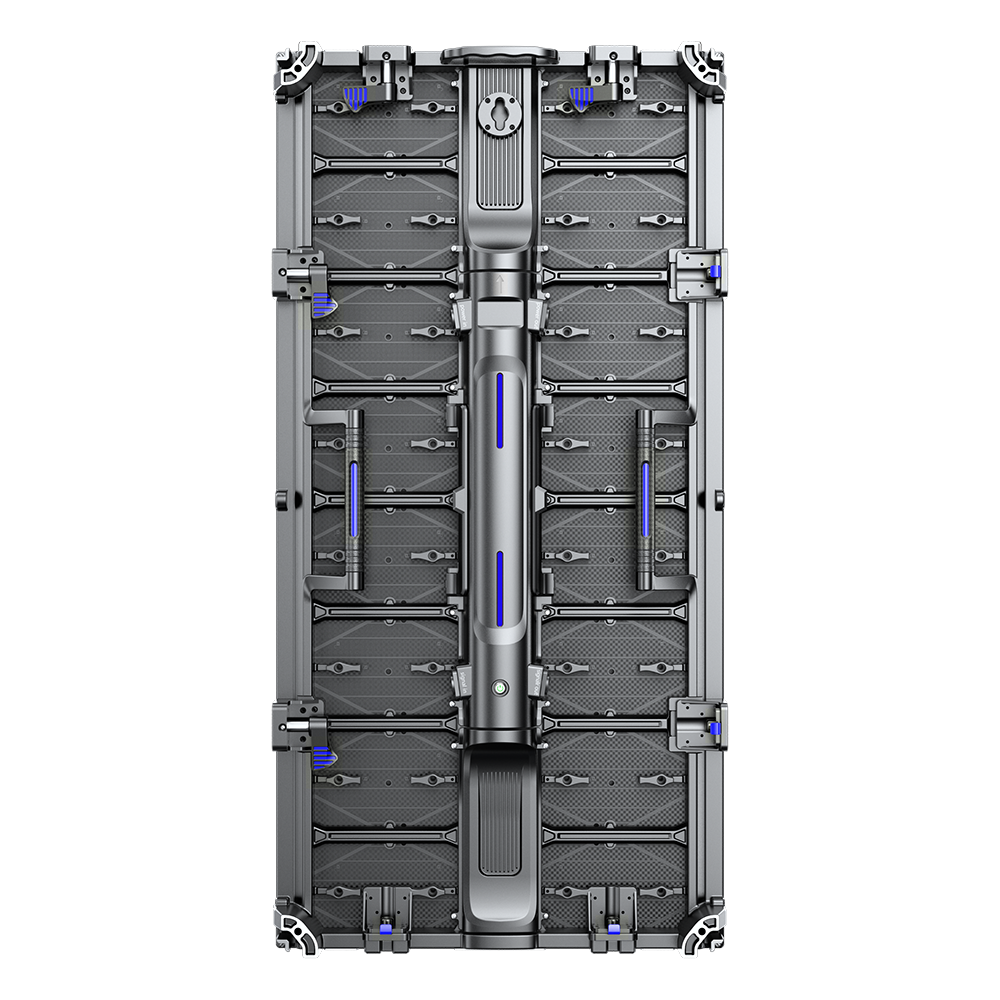

500X1000-AW flat and curved cabinet
125mmx250mm
P3.91/P4.81/P2.976/P2.604
500mmx1000mmx71mm
6KG
Hoisting and fixed installation
Eight modules per Cabinet
Indoor-lp30/0utdoor-lp65
2Pcs:locating pins, 1Pcs: handle.
1PCS:door plank,  2Pcs:power strip.
4PCS:quicklocks,  1Pcs:Flat Plate connector.

ModelP1.95P2.604P2.976P3.91
Pixel Pitch1.95mm2.604mm2.976mm3.91mm
Density262,144 dots/m2147,928 dots/m2123904dot/m265,536dots/m2
Led TypeSMD1515/SMD1921SMD1515/SMD1921SMD2121/SMD1921SMD2121/SMD1921
Panel Size500 x500mm & 500x1000mm500 x500mm & 500x1000mm500 x500mm & 500x1000mm500 x500mm & 500x1000mm
Panel Resolution256x256dots / 256x512dots192x192dots / 192x384dots168x168dots / 168x336dots128x128dots / 128×256 dots
Panel MaterialDie Casting AluminumDie Casting AluminumDie Casting AluminumDie Casting Aluminum
Screen Weight7.6KG / 14KG7.6KG / 14KG7.6KG / 14KG7.6KG / 14KG
Drive Method1/64 Scan1/32 Scan1/28 Scan1/16 Scan
Best Viewing Distance1.9-20m2.5-25m2.9-30m4-40m
Brightness900 nits / 4500 nits900 nits / 4500 nits900 nits / 4500 nits900 nits / 5000nits
Input VoltageAC110V/220V ±10％AC110V/220V ±10％AC110V/220V ±10％AC110V/220V ±10％
Max Power Consumption800W800W800W800W
Average Power Consumption300W300W300W300W
Waterproof (for outdoor)Front IP65, Rear IP54Front IP65, Rear IP54Front IP65, Rear IP54Front IP65, Rear IP54
ApplicationIndoor & OutdoorIndoor & OutdoorIndoor & OutdoorIndoor & Outdoor
Life Span100,000 Hours100,000 Hours100,000 Hours100,000 Hours
