BD Series

Upgrade to our high-quality BD Series screens featuring seamless CNC machining, fast cooling, and comprehensive supply chain for reliable performance.

straight screen, floor tiles, arc can be assembled
  • Anti-interference---special anti electromagnetic interference function
  • Fast cooling---good heat dissipation performance, effectively protecting the module circuit
  • Easy installation---Installation takes only 20 seconds
  • High precision---seamiess splicing though CNC machining
  • High universality---can be processed according to module drawing,used for indoor
  • High cost-effective---large-scale production,complete prduction &supply chain

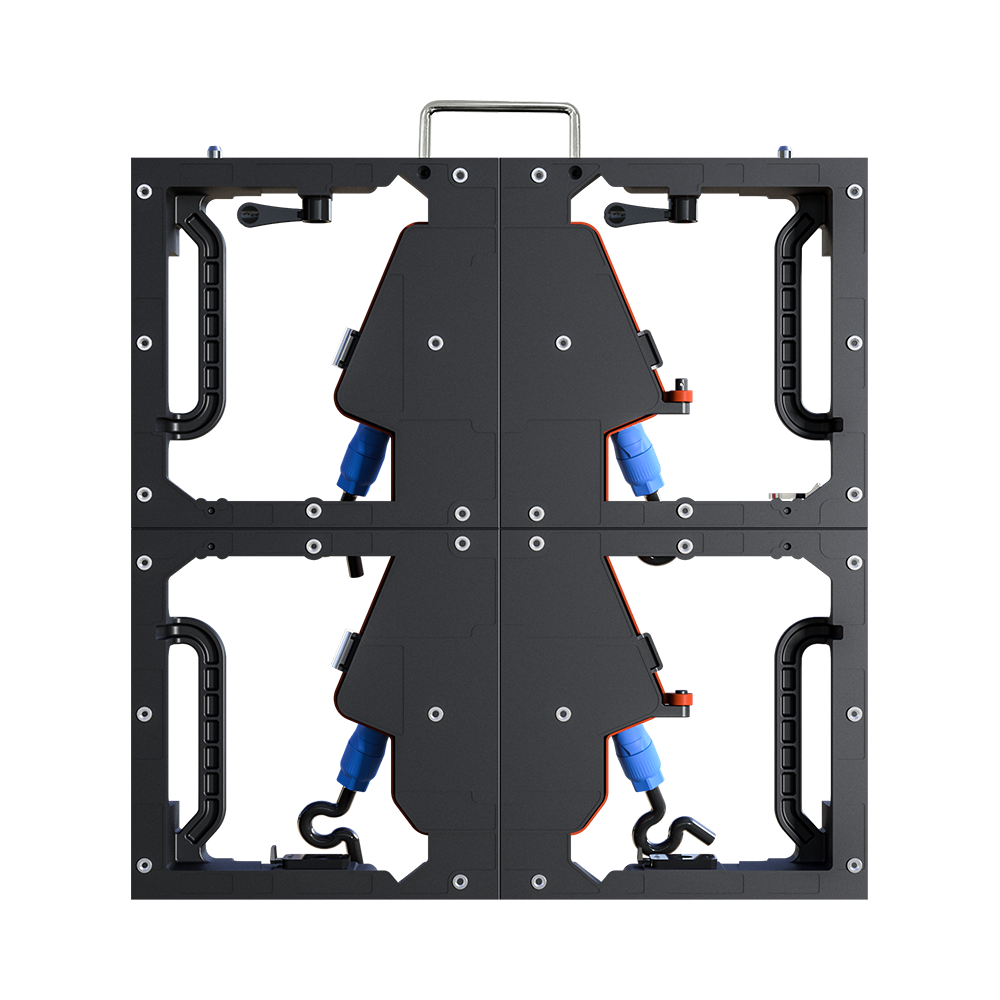

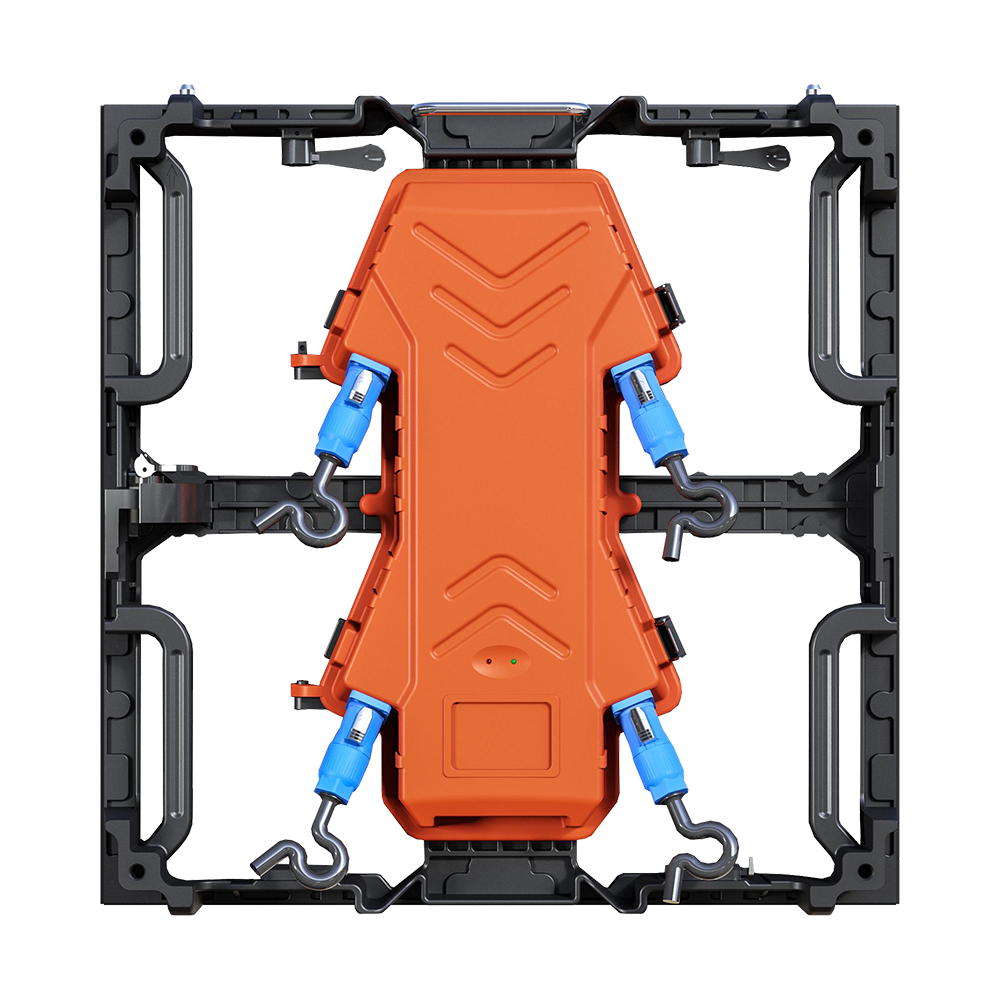

500X500-BD

SizeW500*H500*D67(mm)
Weight4.3k
ModuleP3.91/P4.46/P4.81/P5.21/P6.25/P7.81/P8.91
MaterialAluminum alloy
InstallationLifying,Fixed installation
Use of the environmentindoor/Outdoor
included accessoriesFast lock,handle,system/power installation plate,connecting piece
Cabinet colorBlack,Other color customization
PCB BoardP3.91/P4.46/P4.81/P5.21/P6.25/P7.81/P8.91
Suite Size250mm*250mm
Flight Case5PCS cabinet in one case,6PCS cabinet in one case
Hanging beamone beam holds 1/2 PCS cabinet
Power Supply200W-5V 40A，300W-5V 60A
Power Connector20A 3*2.5㎡ National standard

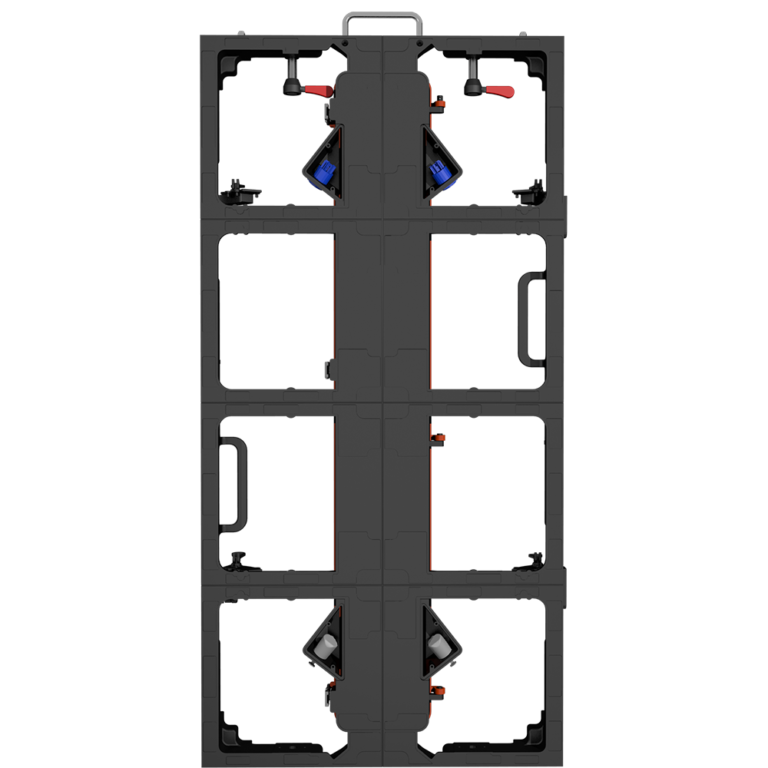

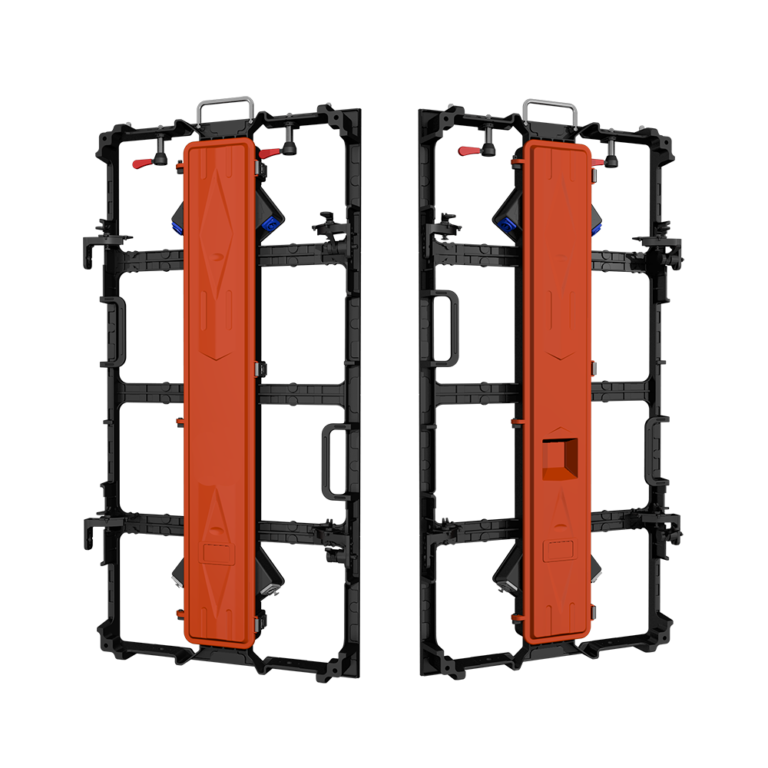

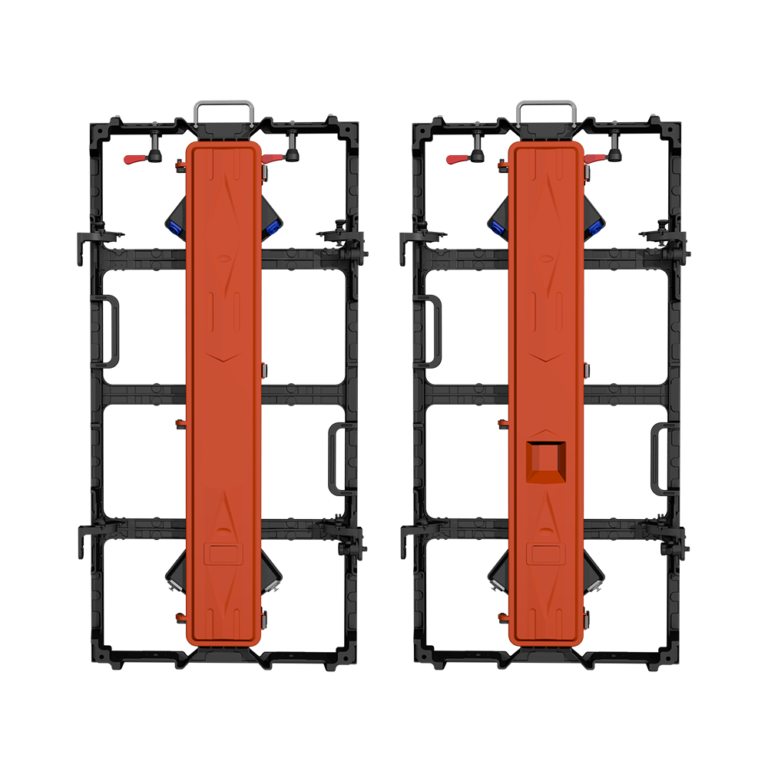

500X1000-BD

SizeW500*H1000*D67(mm)
Weight5.1kg
ModuleP3.91/P4.46/P4.81/P5.21/P6.25/P7.81/P8.91
MaterialAluminum alloy
InstallationLifying,Fixed installation
Use of the environmentindoor/Outdoor
included accessoriesFast lock,handle,system/power installation plate,connecting piece
Cabinet colorBlack,Other color customization
PCB BoardP3.91/P4.46/P4.81/P5.21/P6.25/P7.81/P8.91
Suite Size250mm*250mm
Flight Case5PCS cabinet in one case,6PCS cabinet in one case
Hanging beamone beam holds 1/2 PCS cabinet
Power Supply200W-5V 40A，300W-5V 60A
Power Connector20A 3*2.5㎡ National standard
