BM Series
The BM SERIES LED DISPLAY offers high universality, allowing customization per module drawing, ensuring optimal performance and ease of use.

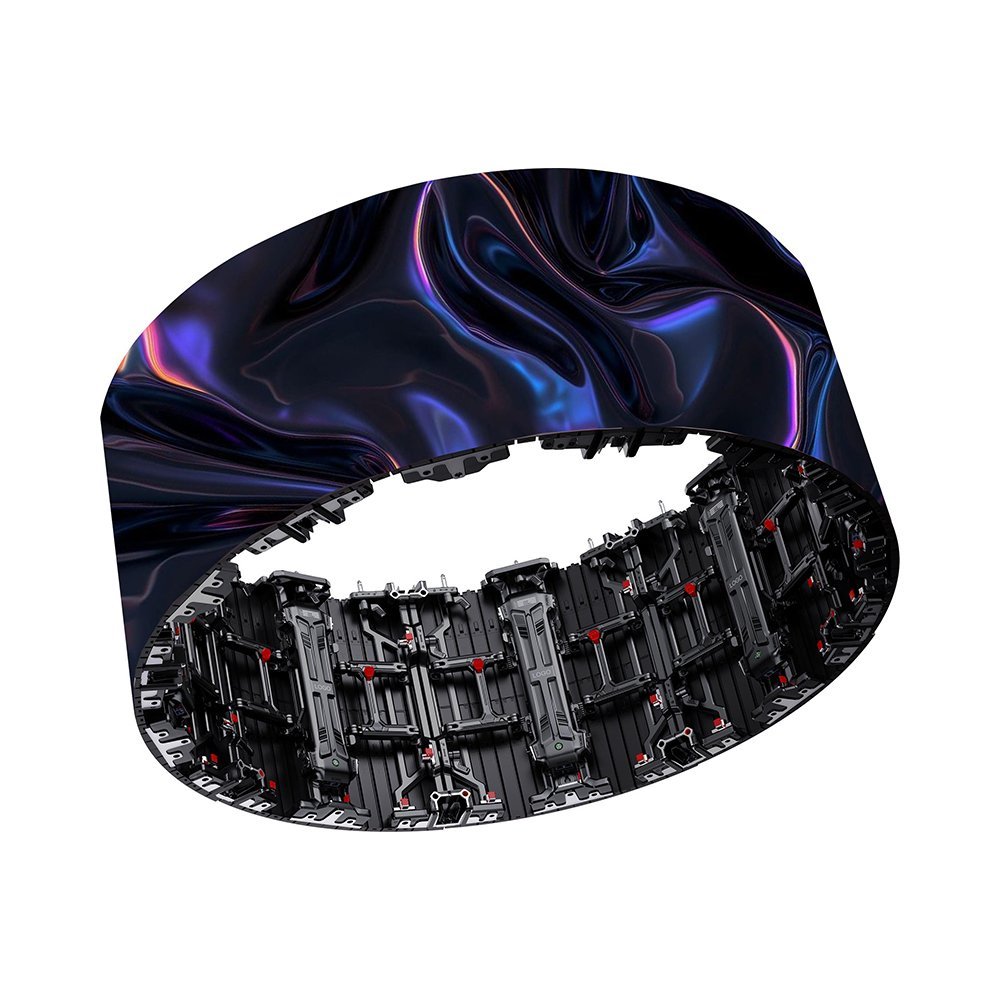

straight screen, floor tiles, arc can be assembled
- Anti-interference---special anti electromagnetic interference function
- Fast cooling---good heat dissipation performance, effectively protecting the module circuit
- Easy installation---Installation takes only 20 seconds
- High precision---seamiess splicing though CNC machining
- High universality---can be processed according to module drawing,used for indoor
- High cost-effective---large-scale production,complete prduction &supply chain

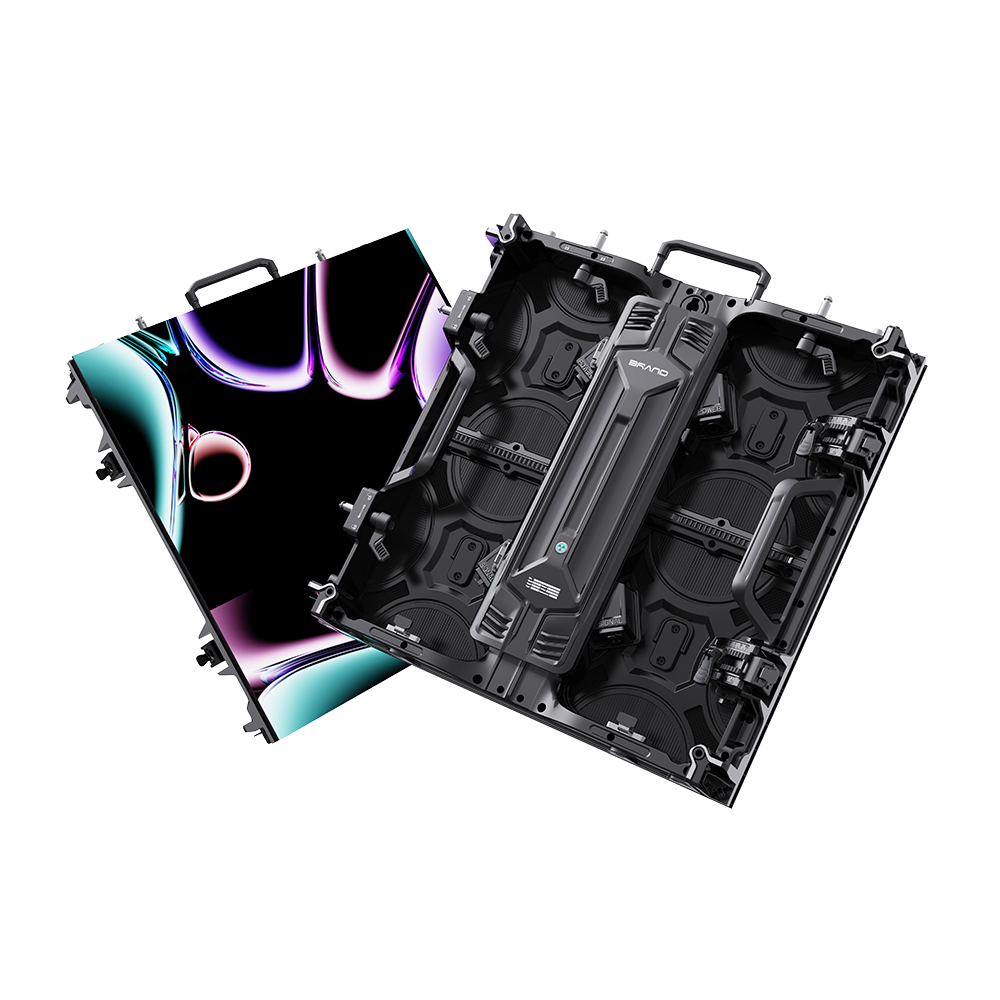

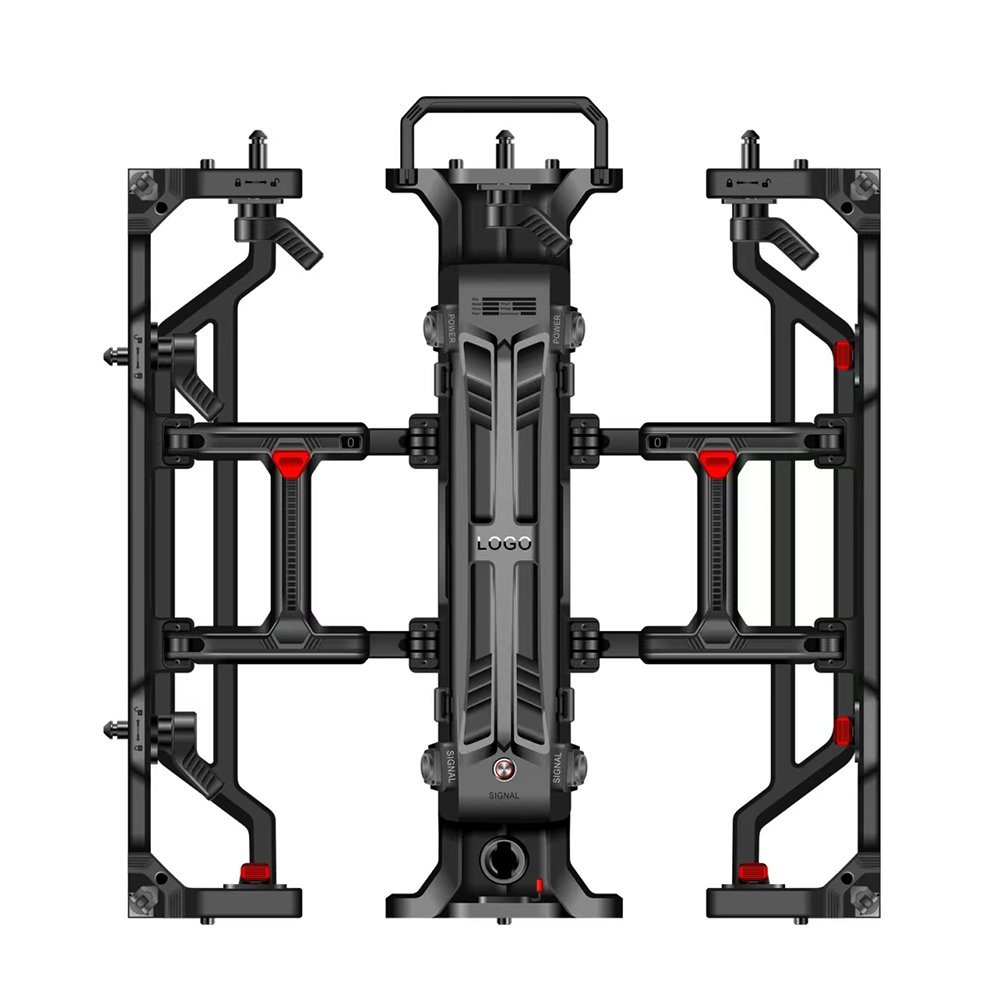

BM Series : 500X500-BM
| Size | W500*H500*D69(mm) |
|---|---|
| Weight | AI 4.0kg/Mg 2.64kg |
| Module | P2.5/P2.604/P2.976/P3.91/P4.46/P4.81/P5.21/P6.25 |
| Material | Magnesium alloy/Aluminum alloy |
| Installation | Lifying,Fixed installation |
| Use of the environment | indoor/Outdoor |
| included accessories | Fast lock,handle,system/power installation plate,connecting piece |
| Cabinet color | Black,Other color customization |
| PCB Board | P2.5/P2.604/P2.976/P3.91/P4.46/P4.81/P5.21/P6.25 |
| Suite Size | 250mm*250mm |
| Flight Case | 5PCS cabinet in one case,6PCS cabinet in one case |
| Hanging beam | one beam holds 1/2 PCS cabinet |
| Power Supply | 200W-5V 40A，300W-5V 60A |
| Power Connector | 20A 3*2.5㎡ National standard |

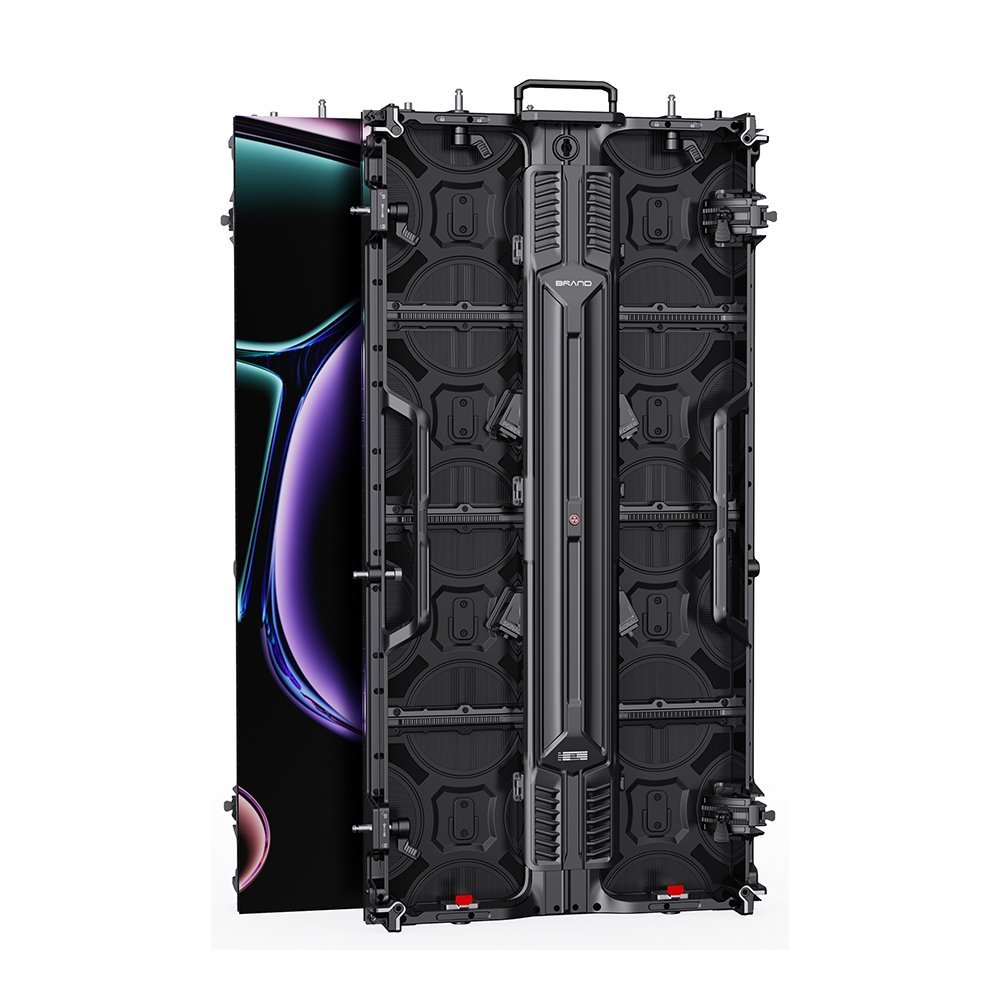

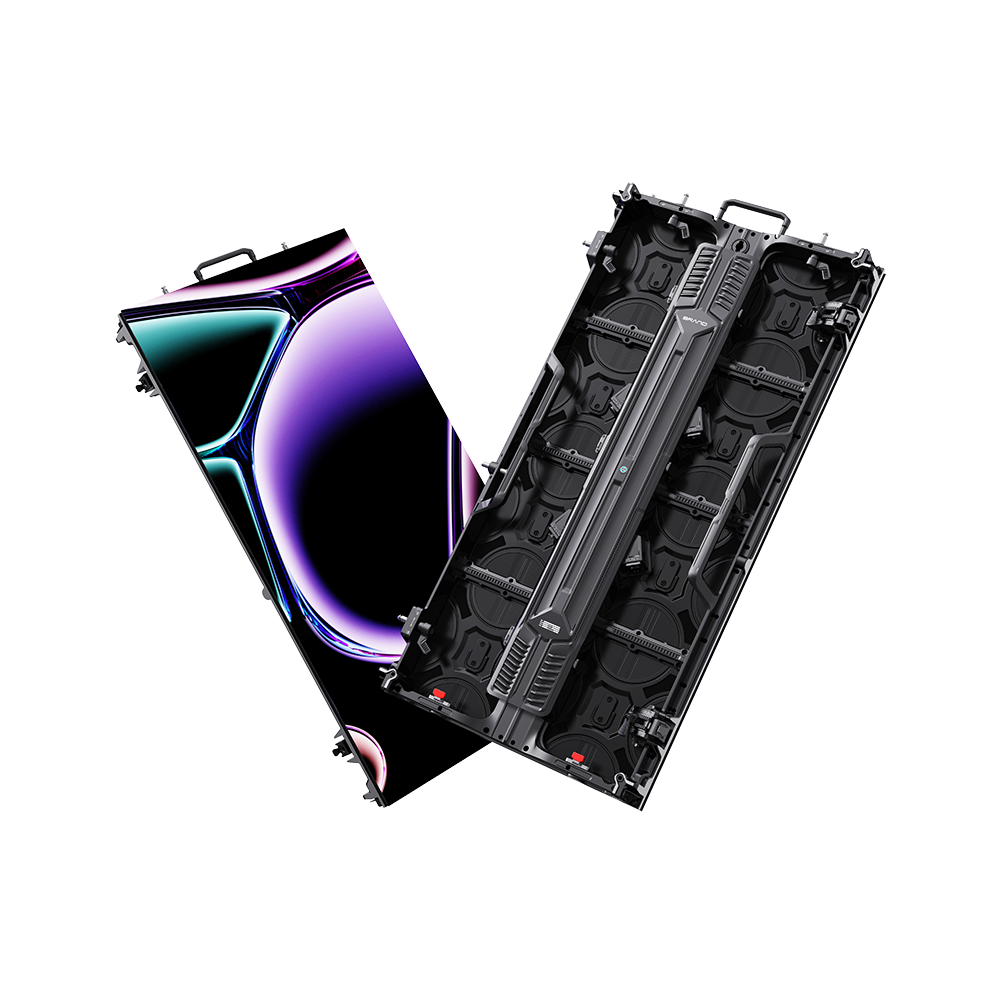

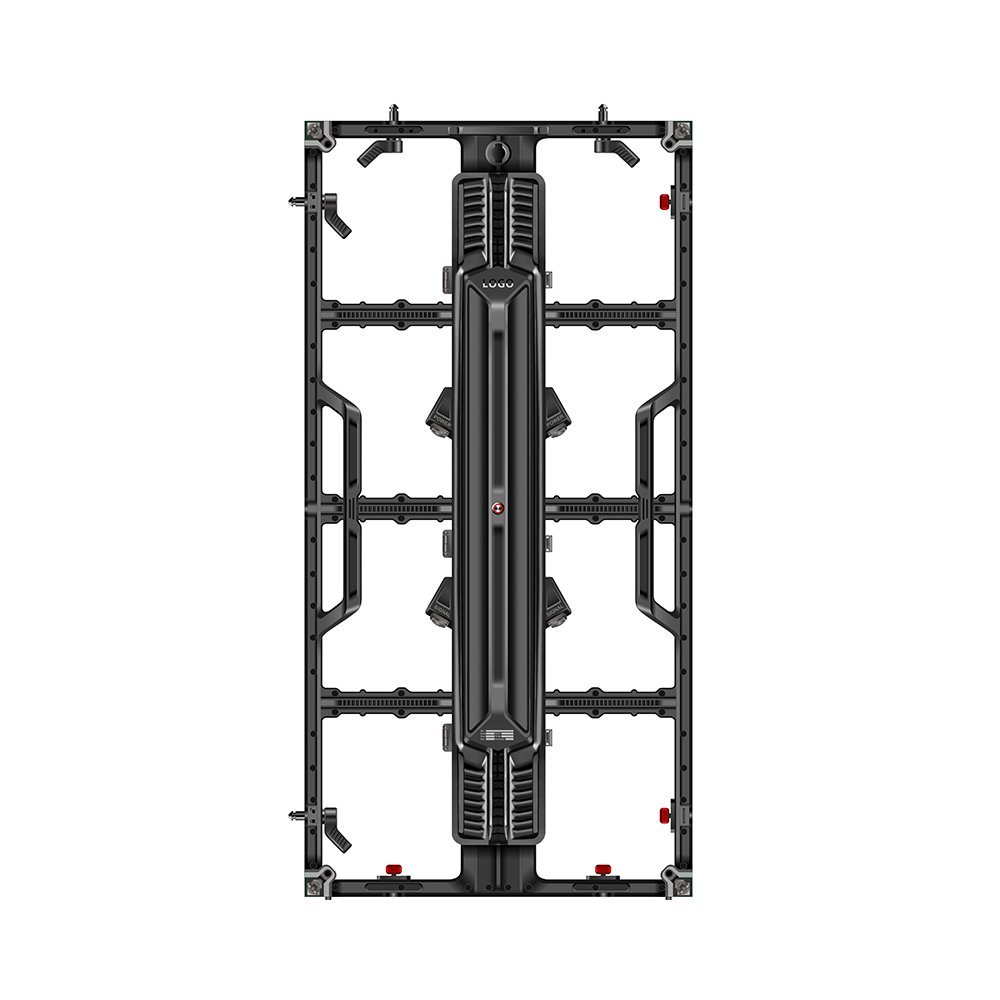

BM Series : 500X1000-BM
| Size | W500*H1000*D69(mm) |
| Weight | AI 6.5kg/Mg 4.29kg |
| Module | P2.5/P2.604/P2.976/P3.91/P4.46/P4.81/P5.21/P6.25 |
| Material | Magnesium alloy/Aluminum alloy |
| Installation | Lifying,Fixed installation |
| Use of the environment | indoor/Outdoor |
| included accessories | Fast lock,handle,system/power installation plate,connecting piece |
| Cabinet color | Black,Other color customization |
| PCB Board | P2.5/P2.604/P2.976/P3.91/P4.46/P4.81/P5.21/P6.25 |
| Suite Size | 250mm*250mm |
| Flight Case | 5PCS cabinet in one case,6PCS cabinet in one case |
| Hanging beam | one beam holds 1/2 PCS cabinet |
| Power Supply | 200W-5V 40A，300W-5V 60A |
| Power Connector | 20A 3*2.5㎡ National standard |
