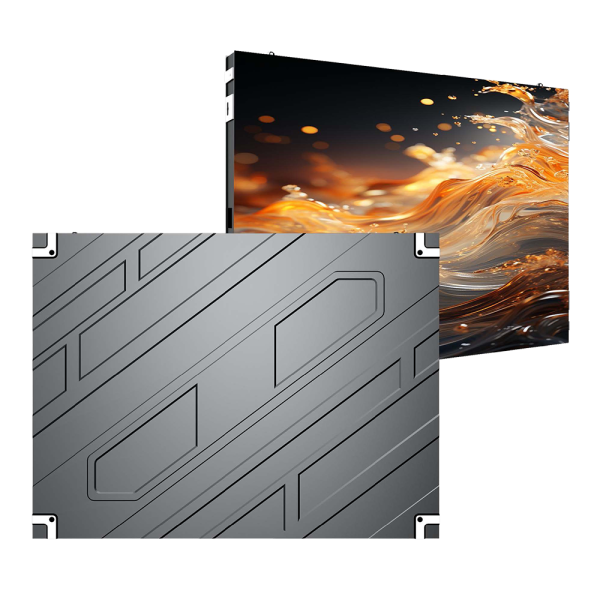

Glint Series
Fine Pitch LED Display
Explore the versatile Glint Series LED Panels, suitable for offices, retail, educational, and hospitality venues,with various cabinet options for every setting.

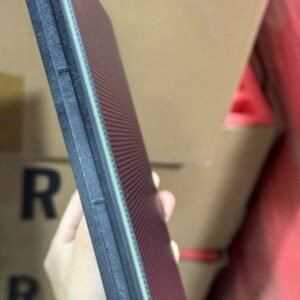

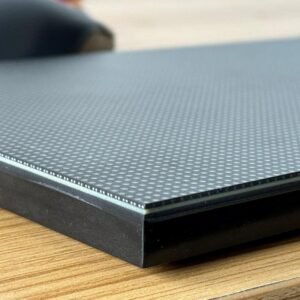

Advanced GOB encapsulation technology
Its ensuring a higher level of durability and improved thermal management. This packaging method minimizes the risk of damage, enabling long-lasting performance.
Full Series Products

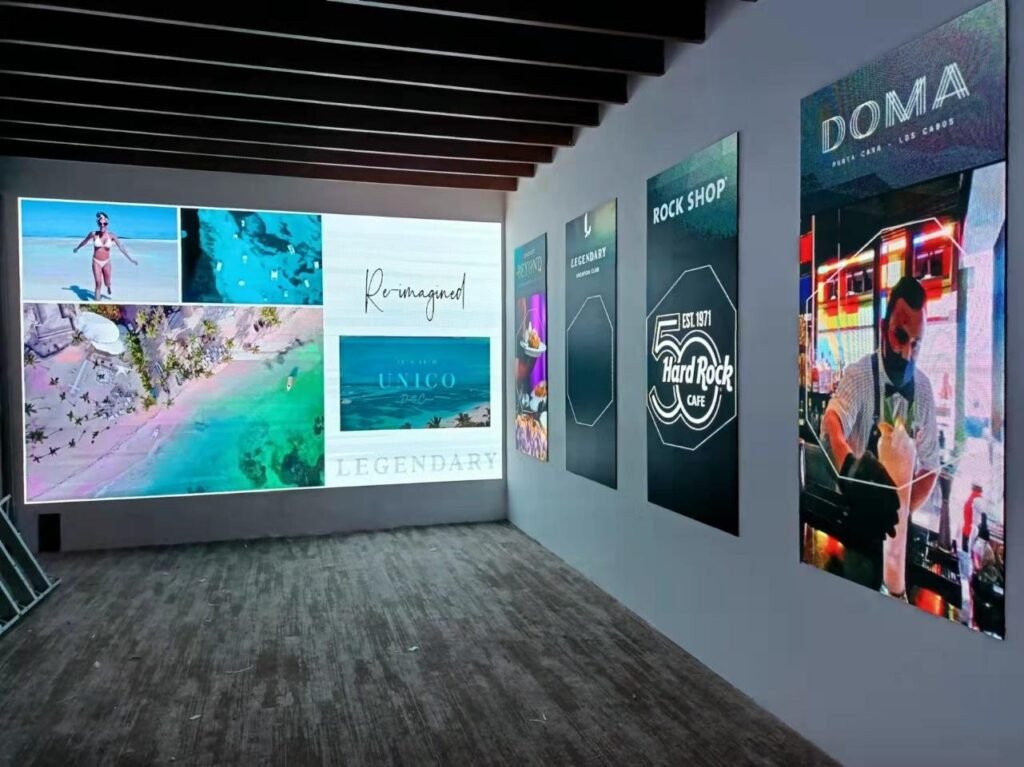

Applications

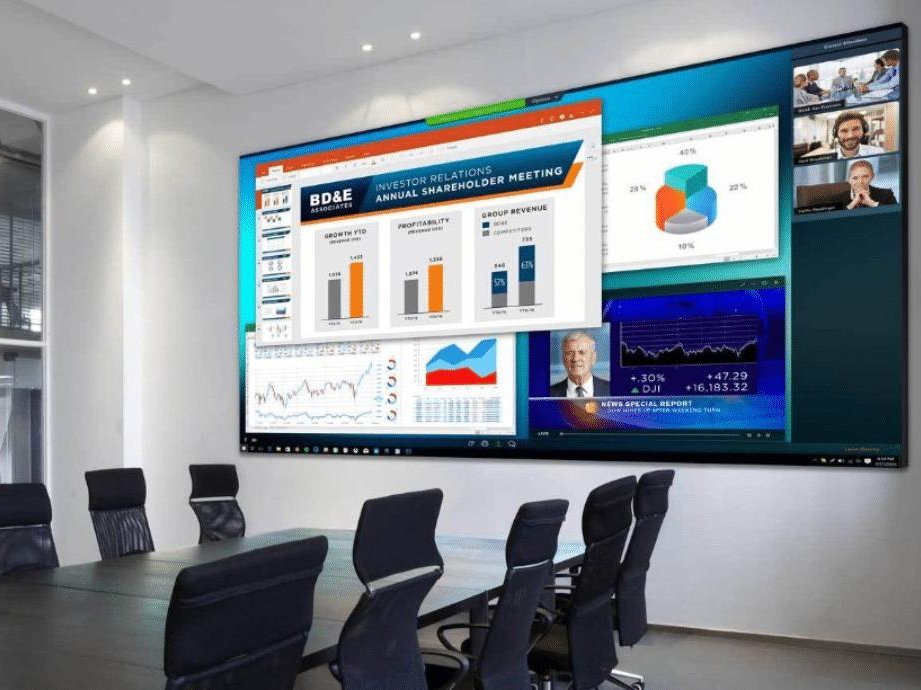

The Glint GOB LED Panel is versatile and can be used in a variety of settings including: Offices, Retail Spaces, Educational Institutions, Art Galleries.Hospitality Venues……

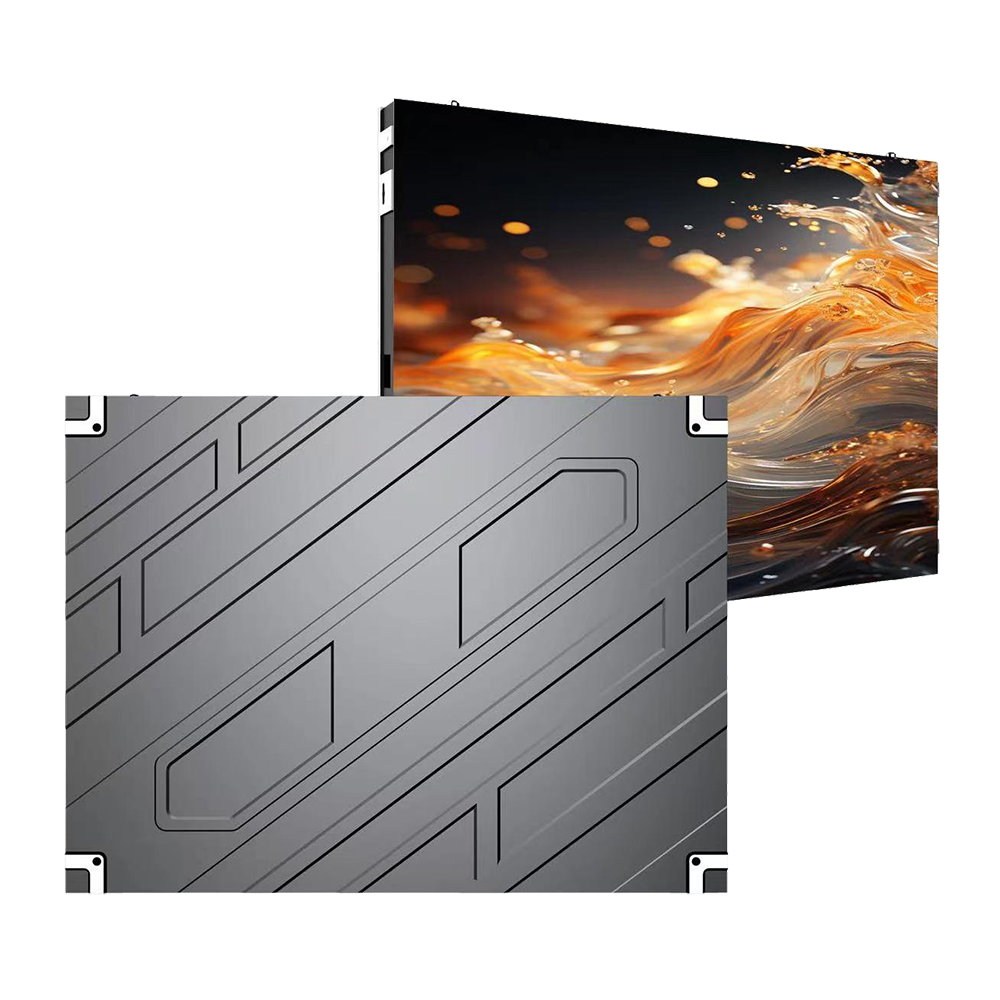

640*480 Indoor Cabinet Parameters
| Pixel Pitch (mm) | P1.25 indoor | P1.53 indoor | P1.86 indoor | P2 indoor | P2.5 indoor | P3.076 indoor | P4 indoor |
| Pixel structure | SMD1010 | SMD1515 | SMD2020 | ||||
| Module resolution (W×H) | 256*128 | 208*104 | 172*86 | 160*80 | 128*64 | 104*52 | 80*40 |
| Cabinet resolution (W×H) | 512*384 | 416*312 | 344*258 | 320*240 | 256*192 | 208*156 | 160*120 |
| Pixel density (dot/m2) | 640000 | 422500 | 288906 | 250000 | 160000 | 105688 | 62500 |
| White balance brightness (nit) | 195/580 | 150/440 | 167/500 | 180/540 | 180/540 | ||
| Power consumption (W/㎡) | 1/64 | 1/52 | 1/43 | 1/40 | 1/32 | 1/26 | 1/20 |
| Scanning method | ≥600cd/㎡ | ≥700cd/㎡ | ≥800cd/㎡ | ||||
| Connection Method | 5 | ||||||
| Module size (mm) | Soft Connections | ||||||
| Cabinet size (mm) | 320*160 | ||||||

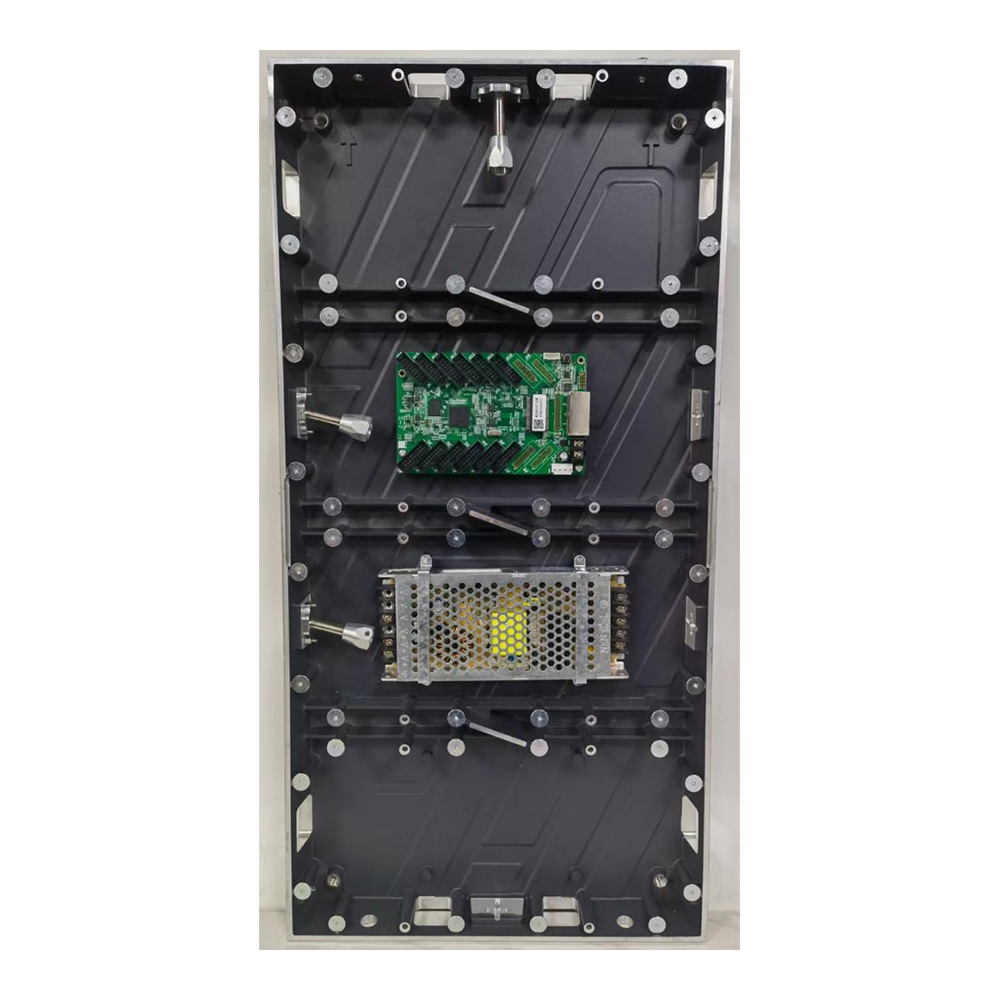

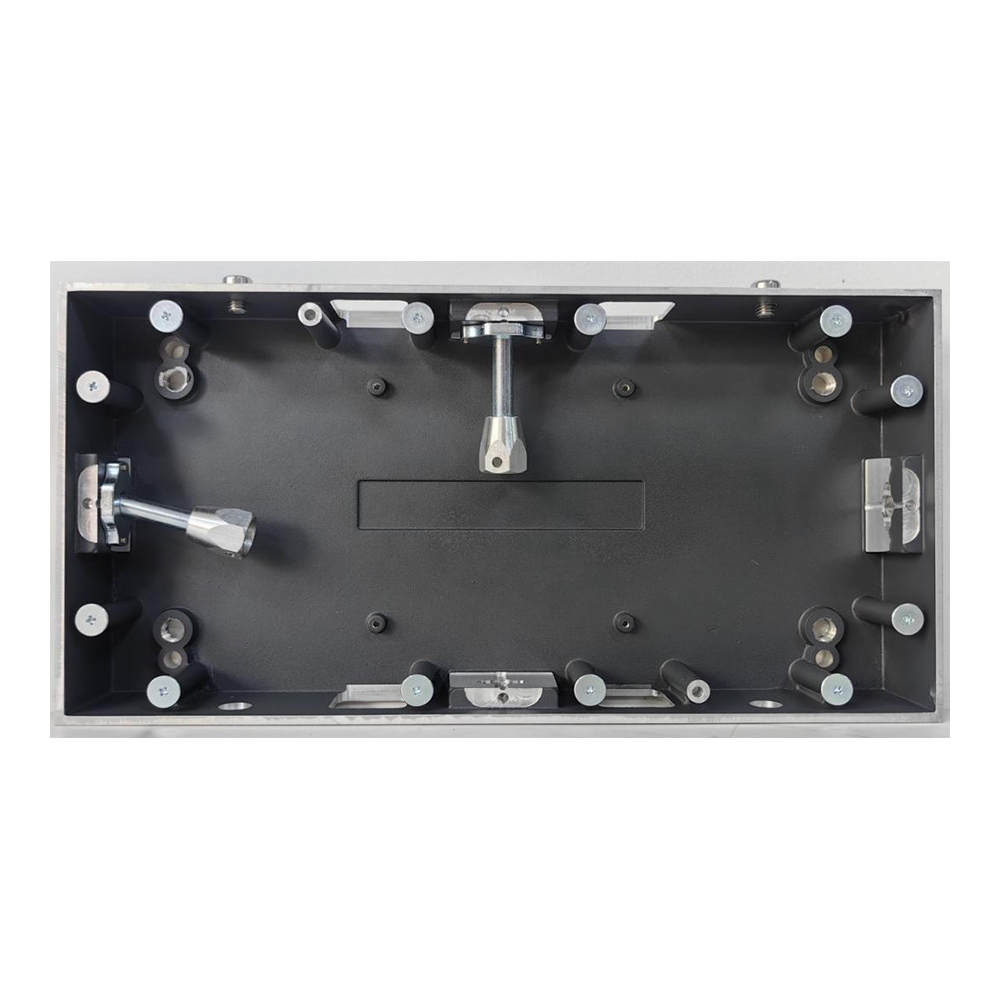

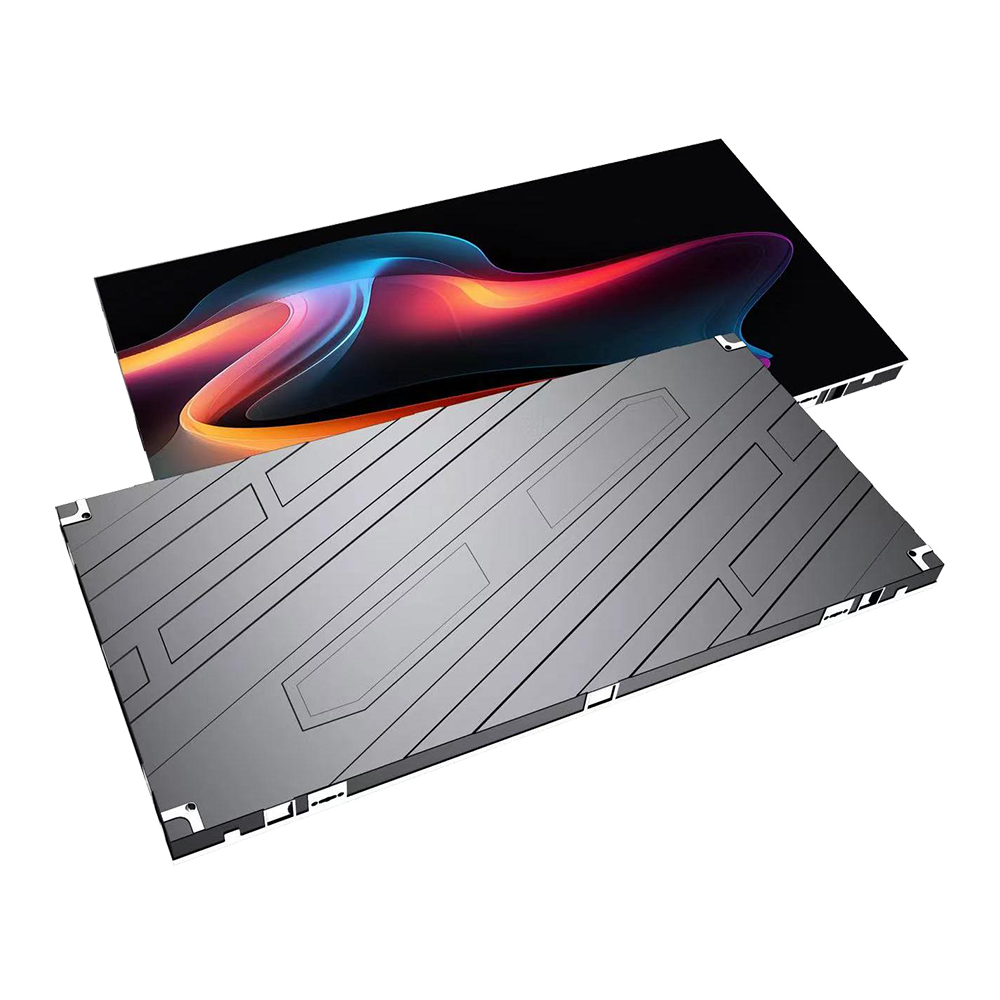

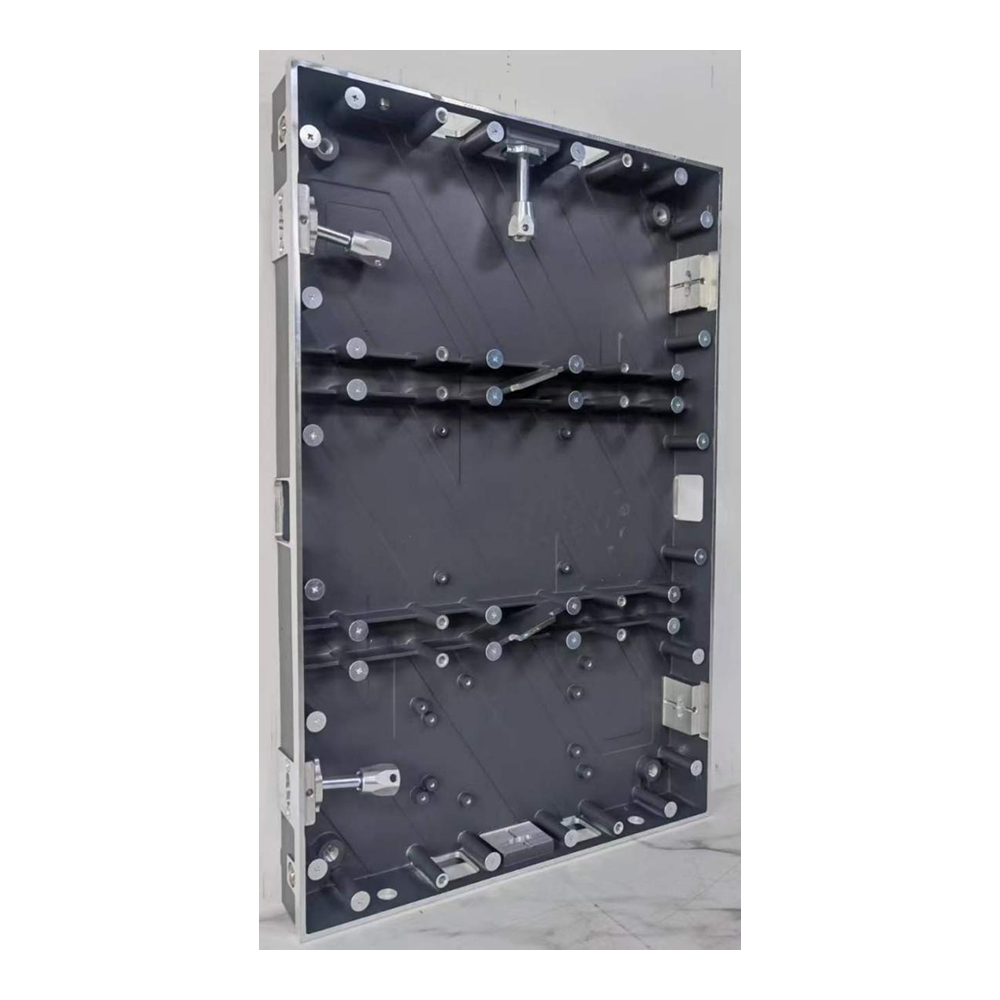

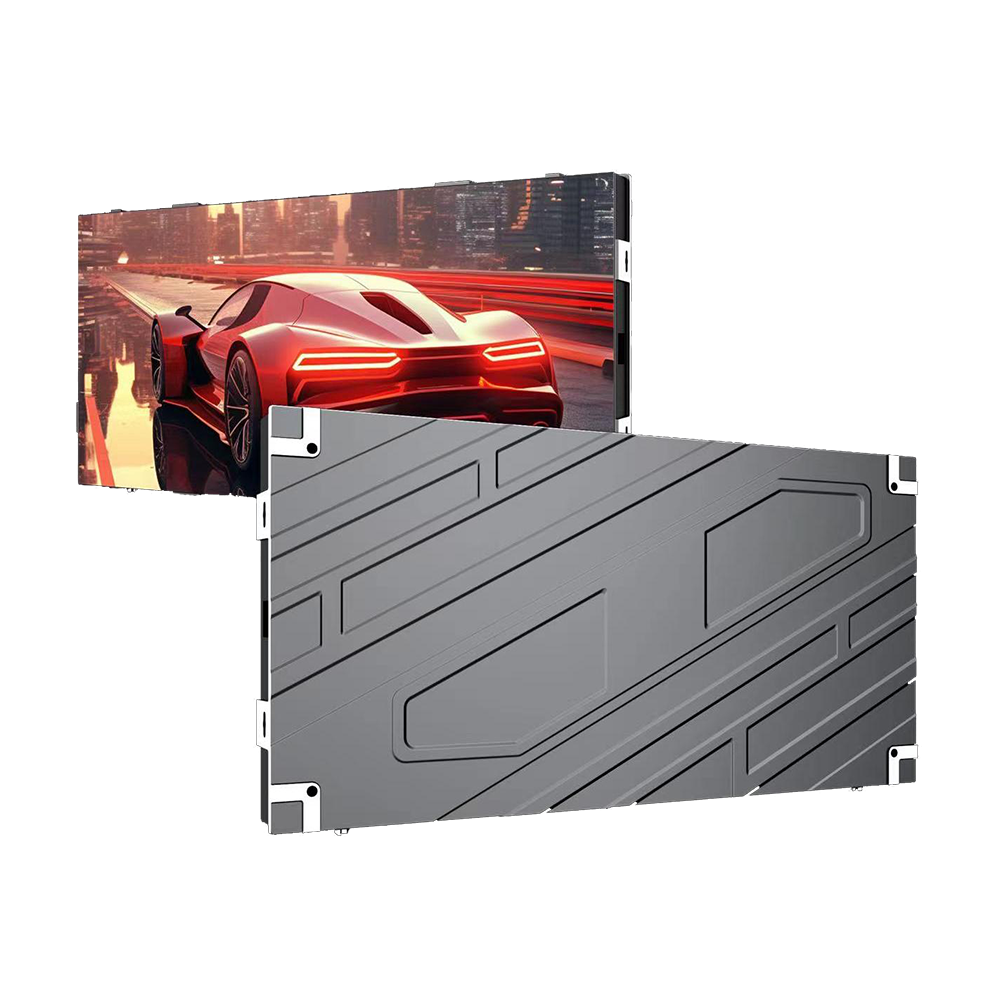

| Module composition (W×H) | 640*480 Standard, optional 640*640, 960*480, 320*640, 320*480, 320*160, 640*320 | ||||||
| Unit area (m2) | 2*3 | ||||||
| Weight (kg/Cabinet) | 0.3072 | ||||||
| IP Grade | IP30 | ||||||
| Material | Die-cast aluminium | ||||||
| Maintenance mode | Front Maintenance | ||||||
| Colour temperature (K) | 6500-12000K | ||||||
Horizontal/Vertical Viewing Angle | 160°/140° | ||||||
Dissociation of uncontrolled points | ≤0.1‰ | ||||||
| Brightness uniformity | ≥97% | ||||||
| Luminance Uniformity | ±0.003 | ||||||
| Power Requirements | AC110/220V | ||||||
| Grey level (bit) | 13-16 | ||||||
| Refresh rate (Hz) | 1920/3840/7680 | ||||||
| Control System | Nova/Colorlight | ||||||
Working environment temperature (℃) | -10℃～50℃ | ||||||
Working environment humidity (RH) | 10% – 90% | ||||||
| Communication mode | Category 5 cable | ||||||
